Features
1. The appearance is simple and exquisite, and the protection grade is IP65;
2. Using Temperature control to start and stop the cooling fan, quiet and energy saving;
3. The buttons are sensitive and with long lifetime;
4. Automatically switching technology of demand pressure and actual pressure display is adopted;
5. Adopting fan type rotating running lamp as operation indication, which is more fashionable;
6. Designed with universal butt, easy to install.
1. Easy to switch different water supply modes with one button;
2. Non-stop for small flow and constant pressure;
3. Automatic recovery is adopted when it’s water shortage, over voltage, under voltage, overheating and etc.;
4. Anti-rust and anti-blocking technology is adopted in the water pump when it’s not being used;
5. Simple and easy to operate, and no need for professional;
6. Automatic real-time pressure detection is adopted, the users doesn’t need to debug, the equipment can be used when it is powered on;
7. No need for after-sales service, voice prompts will help the user to check the cause of the fault;
8. Designed with protection when it’s water shortage, over voltage, under voltage, over current, overload, overheating, short circuit, and so on, which provided comprehensive protection of the pump.
Functions
1. Common terminal functions can meet basic needs;
2. Seven simple PLC, suitable for simple program control;
3. Water and gas supply PID, to achieve pressure stability;
4. Constant voltage feedback signals of both voltage and current;
5. Protection is complete when it’s over voltage, over temperature, over flow and etc.
1. Voice function: technical guidance helps troubleshooting;
2. 1000M wireless remote control;
3. Mobile App remote control.
Applicable voltage and power
1. The voltage range of 110V level: 80V-145V, power: 0.1KW, 0.2KW, 0.4KW, 0.75KW, 1.5KW, 2.2KW;
2. The voltage range of 200V level: 160V-260V, power: 0.1KW, 0.2KW, 0.4KW, 0.75KW, 1.5KW, 2.2KW;
3. The voltage range of 400V level: 340V-440V, power: 0.1KW, 0.2KW, 0.4KW, 0.75KW, 1.5KW, 2.2KW, 3KW;
|
Voltage level |
Model |
Output current |
Adapted motor |
Fixed way |
|
|
(A) |
KW |
HP |
|||
|
Single phase AC220V |
XCD-H2200-200W |
1 |
0.2 |
0.25 |
Knapsack |
|
XCD-H2200-300W |
1.6 |
0.3 |
0.33 |
Knapsack |
|
|
XCD-H2200-400W |
2.5 |
0.4 |
0.5 |
Knapsack |
|
|
XCD-H2200-600W |
3.5 |
0.6 |
0.75 |
Knapsack |
|
|
XCD-H2200-800W |
4.5 |
0.8 |
1 |
Knapsack |
|
|
XCD-H2200-1100W |
6 |
1.1 |
1.5 |
Knapsack |
|
|
XCD-H2200-1500W |
7.5 |
1.5 |
2 |
Knapsack |
|
|
XCD-H2200-2200W |
11.5 |
2.2 |
3 |
Knapsack |
|
 |
||||||

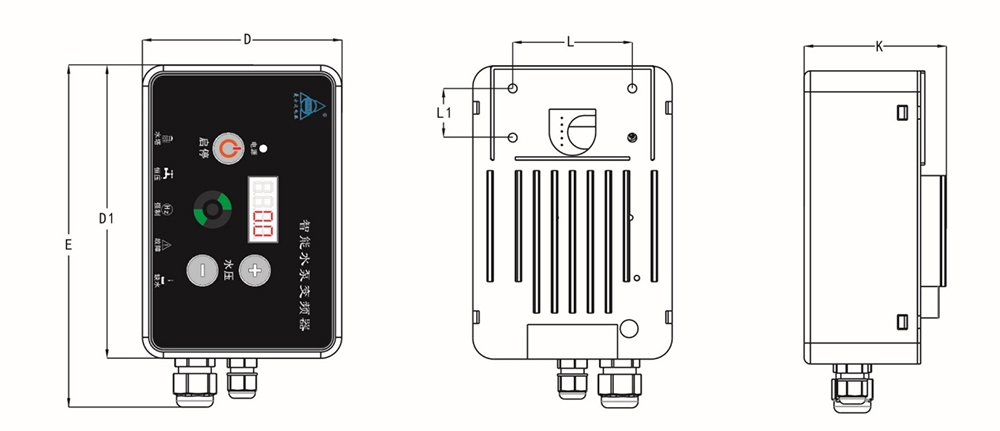

| Inverter model specifications |
Input voltage | D(mm) | D1(mm) | K(mm) | E(mm) | Screw specifications |
| XCD-H2200-0.2K-2.2K | 220V | 115 | 155 | 114.5 | 178 | M4 |
|
Input voltage range |
220V±15% |
Input frequency range |
50～60Hz |
|
Output voltage range |
0V～Rated input voltage |
Power range |
0～120Hz |
|
Carrier frequency |
4K～16.0KHz |
Power range |
0.2～2.2KW |
|
Overload capacity |
120% rated current 120 seconds 150% rated current 5 seconds |
||
|
Programmable analog input |
0～5V analog voltage input |
||
|
Digital input |
1 way switch signal input |
||
Product Application
Main application occasions of water pump frequency converter：
Automatic control constant pressure frequency converter for pump, not only can be widely used in the water supply system of high-rise buildings and water plants, but also can be used in agricultural water pumping and irrigation systems, which has just begun to be applied. It saves water. Energy-saving technology has strong vitality and broad application prospects.
